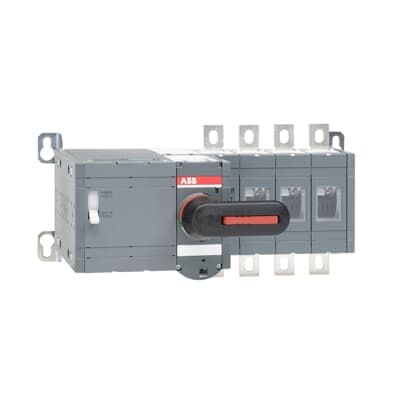

OTM315E4M230C
Product ID:83853
Updated: 2026/7/15
Key Features
- 1Switch currents reliably from 40 A to 2500 A at up to 1000 V AC.
- 2Operate manually during emergencies for added safety and control.
- 3Ensure secure use with comprehensive inbuilt safety features.
- 4Simplify installation in space-constrained panels with a compact design.
- 5Apply the OTM315E4M230C across versatile industrial and commercial applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Net Width | 342 mm | Product Net Height | 185 mm |
| Product Net Depth / Length | 211.5 mm | Product Net Weight | 9 kg |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 315 A | Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | Front IP00 | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Lock Type | Yes | Mechanical Durability | 16000 |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 4P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W | Rated Conditional Short-Circuit Current (Inc) | (500 A fuse, 500 V) 100 kA (500 A fuse, 690 V) 80 kA |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A (1000 V AC) 315 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A (500 V) 315 A (690 V) 315 A | Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 100 kW (400 ... 415 V) 160 kW (500 V) 220 kW (690 V) 315 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-Circuit Making Capacity (Icm) | (690 V) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA | Special Functions | No |
| Standards | IEC 60947-3 | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Lug terminals | Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m |
| Tightening Torque | acc. IEC 60947-1 30 ⦠44 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SCA115335R1001 |
