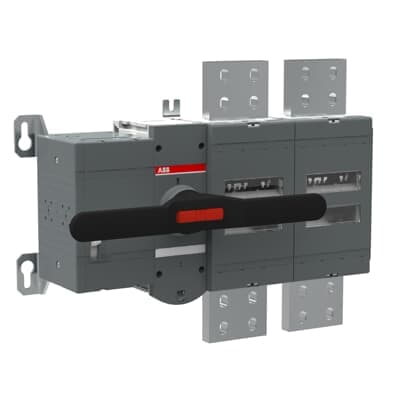

OTM3200E2M230V-135
Product ID:91151
Updated: 2026/7/14
Key Features
- 1Engineer robust operation for DC-20 applications.
- 2Install efficiently with a compact, space-saving design.
- 3Enhance safety with padlockable handles and comprehensive features.
- 4Connect versatile single or double circuits with multiple connection types.
- 5Ensure reliable performance with rated withstand currents and energies.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP00 | Pollution Degree | 3 |
| Product Frame Size | OTM3200-135 | Product Net Width | 546.5 mm 21.5 in |
| Product Net Height | 410 mm 16.1 in | Product Net Depth / Length | 233 mm 9.2 in |
| Product Net Weight | 35.1 kg 77.4 lb | Connection Configuration | Connection type 1 |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3200 A | Conventional Thermal Current (Ithe) | Fully Enclosed 3200 A |
| Degree of Protection | Front IP00 | Handle Color | Black |
| Handle Type | Direct mounted pistol type handle | Lock Type | Yes |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Circuits | 1 | Number of Poles | 2P |
| Operating Mode | Front Operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out Bottom In - Top Out | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V | Rated Operational Current DC-20B | (1500 V DC) 3200 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 80 kA | Rated Voltage (Ur) | 1500 V |
| Special Functions | No | Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch 02 (Left Side) | Terminal Type | Lug terminals |
| Terminal Width | 100 mm 3.94 in | Utilization | Energy Storage System (ESS) |
| Utilization Category | Connecting and disconnecting under no-load conditions - occasional actuation (DC-20B) | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA163296R1001 |
Specifications may be subject to change without notice
