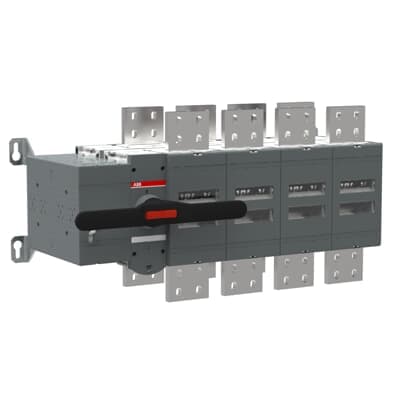

OTM3200E4CM230C
Product ID:84108
Updated: 2026/4/4
Key Features
- 1Ensure robust performance with an AC changeover switch disconnector built for demanding applications. 2、Handle high currents up to 3200 A for diverse electrical installations. 3、Meet EU Directive 2011/65/EU and Amendment 2015/863 for safety compliance. 4、Achieve reliable switching and isolation through an efficient operational design. 5、Support sustainable manufacturing compliant with RoHS II and REACh regulations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 831.5 mm 32.74 in | Product Net Height | 410 mm 16.14 in |
| Product Net Depth / Length | 429 mm 16.89 in | Product Net Weight | 76 kg 167.55 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 3200 A | Distance Between Phases | Standard |
| Fourth Pole Position | Right Side | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W | Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A (500 V) 3200 A |
| Rated Operational Voltage | Main Circuit 1000 V | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Manufacturer ID | 1SCA129242R1001 |
