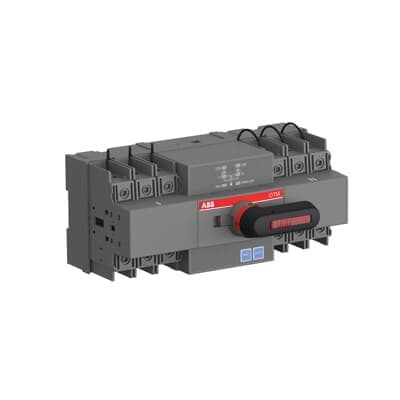

OTM63F3C20D400C
Product ID:73996
Updated: 2026/7/14
Key Features
- 1Ensure reliable power transfer with motorized operation.
- 2Handle up to 63A and 600VAC for demanding applications.
- 3Protect components with a secure IP20-rated enclosure.
- 4Meet industry standards with IEC 60947-3 compliance.
- 5Save panel space using a compact 131x103 mm design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 233 mm 9.17 in | Product Net Height | 103 mm 4.06 in |
| Product Net Depth / Length | 131 mm 5.16 in | Product Net Weight | 1.75 kg 3.86 lb |
| Controller Type | 20D | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 63 A |
| Degree of Protection | Front IP20 | Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 380â¦415 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting | Number of Poles | 3 |
| Pollution Degree | 3 | Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A | Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A | Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 380â¦415 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 6 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | UNSPSC | 39122214 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | E-Number (Finland) | 3640445 |
| Manufacturer ID | 1SCA151423R1001 |
Specifications may be subject to change without notice
