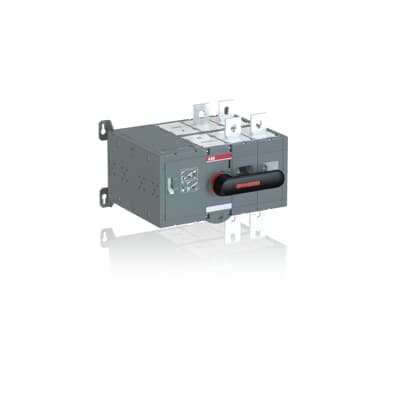

OTM800E2CM230V
Product ID:87050
Updated: 2026/4/4
Key Features
- 1Handle up to 800A current with AC-21A, AC-22A, and AC-31B ratings. 2、Enable seamless transitions with electrically-operated motorized switching. 3、Feature a robust open I-O-II transition design with 2-poles. 4、Include accessories like a manual handle, bolt kit, and male connectors. 5、Enhance safety with 1000V insulation and 20kA short circuit withstand.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 346 mm 13.62 in | Product Net Height | 250 mm 9.84 in |
| Product Net Depth / Length | 299 mm 11.77 in | Product Net Weight | 10.3 kg 22.71 lb |
| Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A | Conventional Thermal Current (Ithe) | Fully Enclosed 800 A |
| Degree of Protection | Front IP20 | Distance Between Phases | Standard |
| Handle Color | Black | Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220 ... 240 V AC | Mounting Type | Base mounting |
| Number of Poles | 2P | Operating Mode | Front operated |
| Pollution Degree | 3 | Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 40 W | Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V | Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 720 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 650 A | Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms | Switches Operating Mechanism | Mechanism at the End of the Switch |
| Terminal Type | Screw Terminals | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open | Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Object Classification Code | Q | ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) | eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SCA121270R1001 |
Specifications may be subject to change without notice
