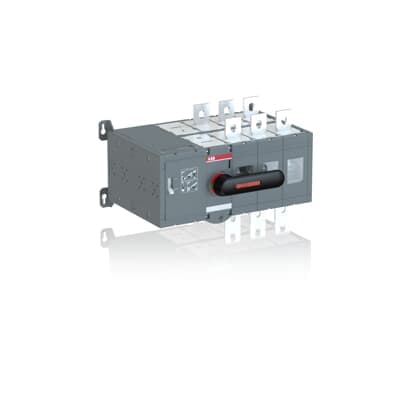

OTM800E3CM230C
Product ID:71296
Updated: 2026/7/14
Key Features
- 1Handle 800 Amps for demanding high-power applications.
- 2Utilize a three-pole design for three-phase systems.
- 3Enable easy switching with motorized operation.
- 4Save space using the direct mounting handle.
- 5Ensure reliability in heavy-duty industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Environmental Information | 1SCC303036D0202 |
| Pollution Degree | 3 | Product Net Width | 411 mm 16.18 in |
| Product Net Height | 250 mm 9.84 in | Product Net Depth / Length | 299 mm 11.77 in |
| Product Net Weight | 22 kg 48.5 lb | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 800 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Handle Color | Black |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 220 ... 240 V AC |
| Mounting Type | Base mounting | Number of Poles | 3P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 40 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV | Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A (500 V) 800 A (690 V) 800 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 720 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 650 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 450 kW (500 V) 560 kW (690 V) 800 kW |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122233 | IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3650302 | Manufacturer ID | 1SCA103570R1001 |
