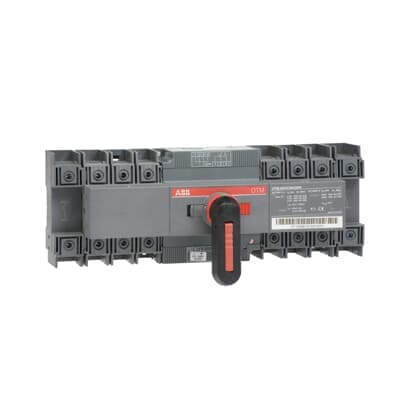

OTM80F4CMA230V
Product ID:84633
Updated: 2026/4/4
Key Features
- 1Ensure high reliability with a robust design for demanding environments. 2、Achieve efficient operation using direct mount handle and base mounting. 3、Simplify installation with included bolt kit, nuts, washers, and male connectors. 4、Meet safety standards by complying with EU Directive 2011/65/EU and Amendment 2015/863. 5、Deploy for 80A, 4P applications up to 800V and 80A current.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Degree of Protection | Front IP20 | Pollution Degree | 3 |
| Product Net Width | 283 mm 11.14 in | Product Net Height | 100 mm 3.94 in |
| Product Net Depth / Length | 116 mm 4.57 in | Product Net Weight | 1.86 kg 4.1 lb |
| Cable Cross-Section | 10 ... 70 mm² | Conventional Free-air Thermal Current (Ith) | Π= 40 °C 80 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 80 A | Degree of Protection | Front IP20 |
| Distance Between Phases | Standard | Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function | Handle Color | Black |
| Handle Type | Direct mounted handle | Motor Operational Voltage | 110 ... 240 V AC/DC |
| Mounting Type | Base mounting | Number of Poles | 4P |
| Operating Mode | Front operated | Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out | Power Loss | at Rated Operating Conditions per Pole 3.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A | Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 80 A (500 V) 80 A (690 V) 80 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 80 A (500 V) 60 A (690 V) 40 A | Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 80 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 80 A | Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 37 kW (500 V) 37 kW (690 V) 37 kW |
| Rated Operational Voltage | Main Circuit 800 V | Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch | Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Transition Type | Open |
| Tightening Torque | acc. IEC 60947-1 6 N·m | Object Classification Code | Q |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122214 | IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| eClass | V11.1 : 27371403 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601235 | Manufacturer ID | 1SCA120100R1001 |
Specifications may be subject to change without notice
