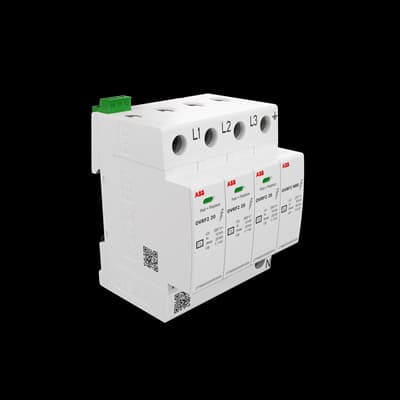

OVRF2 3N 20-350 TS
Product ID:80845
Updated: 2026/7/15
Key Features
- 1Comply with IEC 61643-11 standards for reliable surge protection.
- 2Safeguard low-voltage TT and TN-S distribution systems effectively.
- 3Handle nominal 5 kA and maximum 20 kA discharge currents.
- 4Monitor system status via integrated auxiliary contacts.
- 5Install easily with compact DIN rail mounting design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Power Loss | 0.063 W | Number of Batteries | 0 |
| Product Net Width | 90.8 mm | Product Net Height | 66.2 mm |
| Product Net Depth / Length | 71.2 mm | Product Net Weight | 0.315 kg |
| Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| Object Classification Code | F | Manufacturer ID | 2TAM504100R3501 |
Specifications may be subject to change without notice
