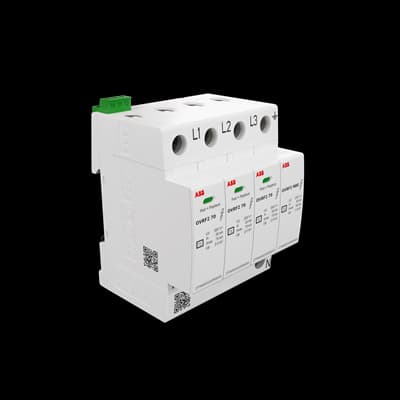

OVRF2 3N 70-350 TS
Product ID:81267
Updated: 2026/4/3
Key Features
- 1Safeguard against direct and indirect lightning strikes. 2、Handle up to 70 kA of discharge current for robust protection. 3、Install easily in space-constrained areas with a compact 71.2 mm width. 4、Meet IEC 61643-11 and EN 61643-11 standards for reliability. 5、Deploy in TT, TN-S, and other low-voltage distribution systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Power Loss | 0.063 W | Number of Batteries | 0 |
| Product Net Width | 90.8 mm | Product Net Height | 66.2 mm |
| Product Net Depth / Length | 71.2 mm | Product Net Weight | 0.378 kg |
| Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| Object Classification Code | F | Manufacturer ID | 2TAM504100R9501 |
Specifications may be subject to change without notice
