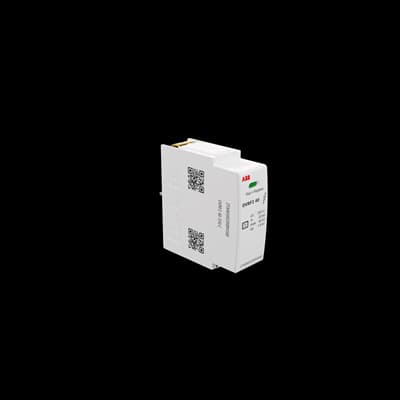

OVRF2 40-350 C
Product ID:76889
Updated: 2026/4/3
Key Features
- 1Safeguard against indirect lightning and switching surges with a 1.5 kV protection level. 2、Install easily on DIN rails for reliable operation across various electrical systems. 3、Monitor status precisely with integrated thermal and mechanical indicators. 4、Ensure versatile compatibility with TN, TN-C, TN-S, and TT system configurations. 5、Handle high surge currents up to 40 kA for robust protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Power Loss | 0.063 W | Number of Batteries | 0 |
| Product Net Width | 52.8 mm | Product Net Height | 58.1 mm |
| Product Net Depth / Length | 17.5 mm | Product Net Weight | 0.052 kg |
| Dimension Diagram | 9AKK108469A0713 | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| Object Classification Code | F | Manufacturer ID | 2TAM500200R4500 |
Specifications may be subject to change without notice
