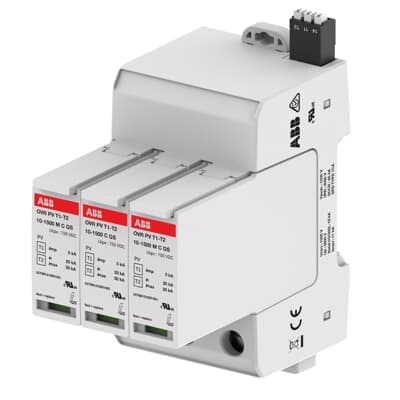

OVR PV T1-T2 10-1500 P TS QS
Product ID:81101
Updated: 2026/4/3
Key Features
- 1Handle Type 1 and Type 2 surge currents for robust lightning protection. 2、Support high-voltage 1500 V DC for large-scale solar installations. 3、Feature self-protection up to 11 kA without extra tools. 4、Enable quick replacement with pluggable cartridges to reduce downtime. 5、Prevent arc ignition with safe bottom wiring and an EOL indicator.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61 643-11 / EN 50539-11 / UL 1449 4th ed | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 1500 V DC | Voltage Rating DC | 1500 V |
| Voltage Protection Level ( Up) | 5 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V |
| Maximum Power Point (MPP) Voltage | 1500 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 11 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 30 kA I (total, 10 / 350 µs) 10 kA | Impulse Current | I (imp, 10 / 350 µs) 5 kA I (total, 10 / 350 µs) 10 kA |
| Short Circuit Withstand Icc | 11 kA | Arrester Class | I II |
| Number of Protected Poles | 2 | Number of Poles | 3 |
| Number of Conductors | 2 | Transmission Standard | Optic |
| Version | Plug-in | Mounting Type | DIN-Rail |
| Product Type | QS | Options Provided | Solar |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Number of Batteries | 0 | Fuse Size | 3 modular spacing |
| Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 4000 m |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V | Voltage Protection Rating UL/CSA (VPR) | Lpe 4 kV Ll 4 kV Ln 0 kV Npe 4 kV |
| Width in Number of Modular Spacings | 3 | Product Net Width | 64 mm |
| Product Net Height | 110 mm | Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.497 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8535 40 00 |
| eClass | V11.0 : 27130805 | Object Classification Code | 141DCC |
| Manufacturer ID | 2CTB812101R1500 |
Specifications may be subject to change without notice
