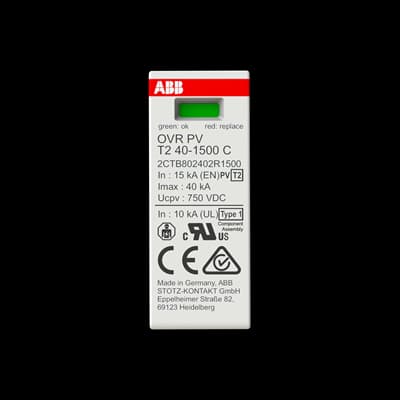

OVR PV T2 40-1500 C
Product ID:81230
Updated: 2026/4/3
Key Features
- 1Safeguard PV systems with 40 kA max discharge current. 2、Operate reliably from -40°C to +80°C. 3、Install easily in compact spaces (90x54x73 mm). 4、Monitor status via clear green/red end-of-life indicator. 5、Meet key safety standards IEC 61643-31 and UL 1449.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61643-31 UL14419 Ed5 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 1500 V DC | Voltage Rating DC | 1500 V |
| Voltage Protection Level ( Up) | 5 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V |
| Maximum Power Point (MPP) Voltage | 1500 V | Rated Service Short-Circuit Breaking Capacity (Ics) | 10 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 10 kA |
| Arrester Class | II | Number of Protected Poles | 2 |
| Number of Poles | 3 | Transmission Standard | Optic |
| Version | Plug-in | Mounting Type | DIN-Rail |
| Options Provided | Solar | Preventive Maintenance Feature | No |
| Status Indicator | Yes | Fuse Size | 1 modular spacing |
| Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 1500 V (L-L) 1500 V (L-N) 0 V (N-PE) 0 V | Voltage Protection Rating UL/CSA (VPR) | Lpe 4 kV Ll 4 kV |
| Product Net Width | 17.5 mm | Product Net Height | 57 mm |
| Product Net Depth / Length | 47 mm | Product Net Weight | 0.063 kg |
| ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363090 | eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC | Manufacturer ID | 2CTB802402R1500 |
Specifications may be subject to change without notice
