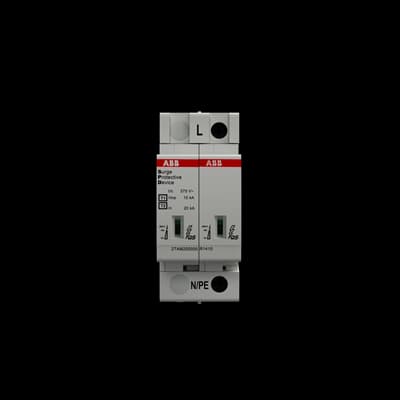

OVR T1-T2 15-275s P QS
Product ID:77154
Updated: 2026/4/3
Key Features
- 1Safeguard systems with 12.5 kA high-energy surge protection. 2、Mount conveniently on DIN rails for easy installation. 3、Operate reliably across a wide -40°C to 80°C temperature range. 4、Ensure indoor safety with IP20 protection against solids. 5、Monitor status easily using integrated mechanical indicators.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of Batteries | 0 | Product Net Width | 0.0356 m |
| Product Net Height | 0.088 m | Product Net Depth / Length | 0.0767 m |
| Product Net Weight | 0.32 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| eClass | V11.0 : 27130805 | Object Classification Code | F |
| Manufacturer ID | 2TAM201000R1410 |
Specifications may be subject to change without notice
