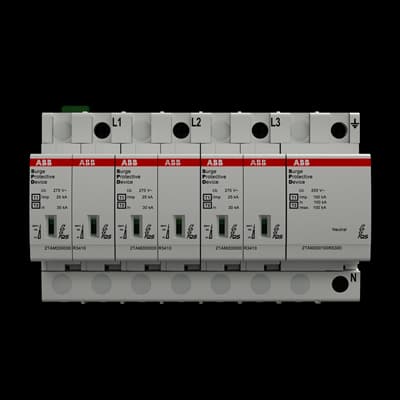

OVR T1-T2 3N 25-275s P TS QS
Product ID:76554
Updated: 2026/4/3
Key Features
- 1Safeguard low-voltage systems against lightning and surge currents. 2、Comply with IEC 61643-11 standards for Type 1 and 2 protection. 3、Replace cartridges easily with the pluggable design to minimize downtime. 4、Coordinate protection using the auxiliary contact for System pro M compact. 5、Handle high discharge currents up to 100 kA for maximum safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of Batteries | 0 | Product Net Width | 0.1246 m |
| Product Net Height | 0.0956 m | Product Net Depth / Length | 0.0767 m |
| Product Net Weight | 1.28 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| eClass | V11.0 : 27130805 | Object Classification Code | F |
| Manufacturer ID | 2TAM204100R3411 |
Specifications may be subject to change without notice
