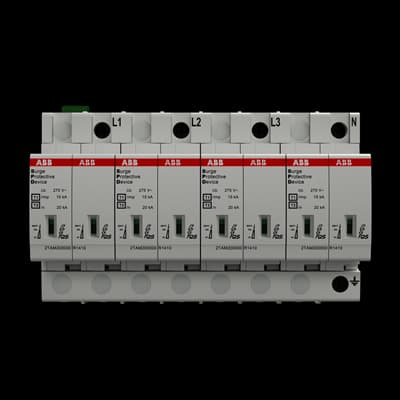

OVR T1-T2 4L 15-275s P TS QS
Product ID:81290
Updated: 2026/4/3
Key Features
- 1Provide comprehensive Type 1+2 protection against lightning and surges per IEC 61643-11. 2、Integrate easily with System pro M compact series to save wiring time. 3、Ensure safety with a 0.1 kA follow current interrupting rating during faults. 4、Extend device life with optional auxiliary contact and reserve varistor features. 5、Withstand high discharge currents up to 80 kA for maximum performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of Batteries | 0 | Product Net Width | 0.1424 m |
| Product Net Height | 0.0956 m | Product Net Depth / Length | 0.0767 m |
| Product Net Weight | 1.28 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer | CN8 | 8536909000 |
| eClass | V11.0 : 27130805 | Object Classification Code | F |
| Manufacturer ID | 2TAM204000R1411 |
Specifications may be subject to change without notice
