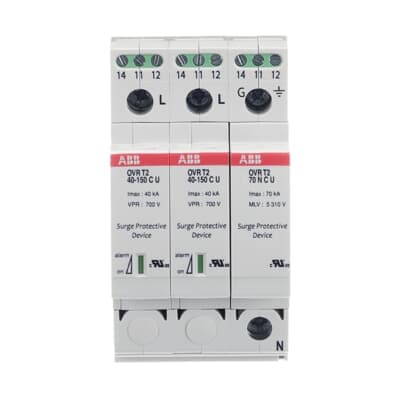

OVR T2 2N 40-150 P TS U
Product ID:69799
Updated: 2026/4/3
Key Features
- 1Safeguard systems with 40 kA discharge current. 2、Install easily using the compact plug-in design. 3、Ensure compliance with IEC and UL safety standards. 4、Protect 120V AC applications reliably. 5、Withstand short-circuits up to 100 kA.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 120 V AC | Nominal AC Voltage of the System (Uo) | 120 V |
| Voltage Protection Level ( Up) | 0.7 kV (L-N) 0.7 kV (N-PE) 0.7 kV | Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 100 kA |
| Arrester Class | II | Number of Protected Poles | 3 |
| Number of Auxiliary Contacts NC | 1 | Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3 | Number of Conductors | 3 |
| Transmission Standard | Optic | Version | Plug-in |
| Mounting Type | DIN-Rail | Options Provided | Residential, commercial building. |
| Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A | Preventive Maintenance Feature | No |
| Status Indicator | Yes | Fuse Size | 3 modular spacing |
| Degree of Protection | IP20 | Maximum Operating Altitude Permissible | Without Derating 5000 |
| Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 175 V (L-L) 303 V (L-N) 175 V (N-PE) 175 V | Maximum Operating Voltage UL/CSA | 175 V |
| Short-Circuit Current Rating (SCCR) | 200 kA | Type of Low Voltage Distribution System UL/CSA | Split Phase |
| Width in Number of Modular Spacings | 3 | Product Net Width | 53.4 mm |
| Product Net Height | 98.5 mm | Product Net Depth / Length | 64.8 mm |
| Product Net Weight | 0.36 kg | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
| UNSPSC | 39121610 | eClass | V11.0 : 27130805 |
| IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DBC |
| Manufacturer ID | 2CTB802344R2100 |
Specifications may be subject to change without notice
