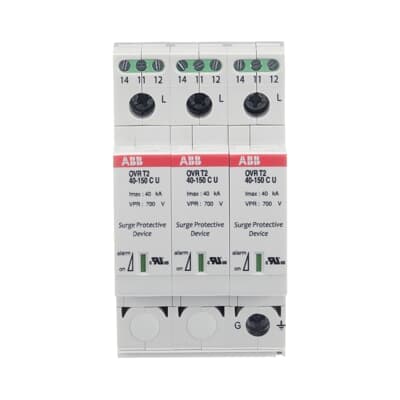

OVR T2 3L 40-150 P TS U
Product ID:69805
Updated: 2026/4/3
Key Features
- 1Achieve high discharge currents up to 40 kA. 2、Meet IEC and UL standards for compliance. 3、Install easily with plug-in DIN-rail mounting. 4、Protect systems with a compact 3-module design. 5、Safeguard residential and commercial buildings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 277 V AC | Nominal AC Voltage of the System (Uo) | 120 V |
| Voltage Protection Level ( Up) | 0.8 kV (L-N) 0.8 kV | Maximum Continuous Operating Voltage (Uc) | (L-PE) 350 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA |
| Short Circuit Withstand Icc | 100 kA | Arrester Class | II |
| Number of Protected Poles | 3 | Number of Auxiliary Contacts NC | 3 |
| Number of Auxiliary Contacts NO | 3 | Number of Poles | 3 |
| Number of Conductors | 3 | Transmission Standard | Optic |
| Version | Plug-in | Mounting Type | DIN-Rail |
| Options Provided | Residential, commercial building. | Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Fuse Size | 3 modular spacing | Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 5000 | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 175 V (L-L) 300 V (L-N) - V (N-PE) - V |
| Maximum Operating Voltage UL/CSA | 175 V | Short-Circuit Current Rating (SCCR) | 200 kA |
| Type of Low Voltage Distribution System UL/CSA | Delta & HRG Wye | Width in Number of Modular Spacings | 3 |
| Product Net Width | 53.4 mm | Product Net Height | 98.5 mm |
| Product Net Depth / Length | 64.8 mm | Product Net Weight | 0.36 kg |
| ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 85363090 | UNSPSC | 39121610 |
| eClass | V11.0 : 27130805 | IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers |
| Object Classification Code | 141DBC | Manufacturer ID | 2CTB802345R2100 |
Specifications may be subject to change without notice
