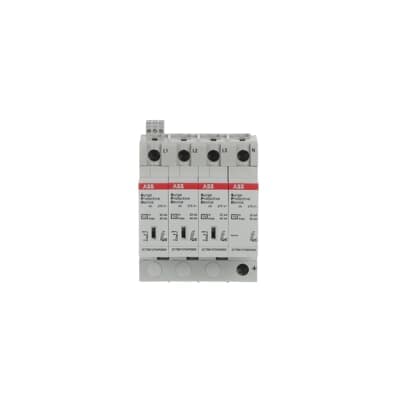

OVR T2 3N 40-275s P TS QS
Product ID:76875
Updated: 2026/4/3
Key Features
- 1Safeguard systems against lightning and surge voltages. 2、Meet international standards for surge protection devices. 3、Cover four poles for comprehensive system protection. 4、Install easily via DIN rail or top hat rail mounting. 5、Offer continued protection after main varistor's service life.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC 61643-11 / EN 61643-11 | Type of Low Voltage Distribution System | TT TN-S |
| Suitable For | To protect the systems against the transient overvoltage (lightning) | Rated Voltage (Ur) | 230 V AC |
| Nominal AC Voltage of the System (Uo) | 230 / 400 V | Voltage Protection Level ( Up) | 1.4 kV (L-N) 1.4 kV (N-PE) 1.4 kV |
| Maximum Continuous Operating Voltage (Uc) | (L-PE) 275 V | Temporary Overvoltage Test Value (UT) | (L-N) 337 V (N-PE) 1200 V |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA | Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA |
| Impulse Current | I (imp, 10 / 350 µs) 2 kA | Short Circuit Withstand Icc | 100 kA |
| Power Loss | 49 mW | Arrester Class | II |
| Number of Protected Poles | 4 | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Number of Poles | 4 |
| Number of Conductors | 4 | Position of Neutral Terminals | Right |
| Transmission Standard | Optic | Version | Plug-in |
| Mounting Type | DIN-Rail | Product Type | QS |
| Options Provided | Residential, commercial building. | Auxiliary Circuit Load | Minimum 12Vdc - 10mA Maximum 250Vac - 1A |
| Preventive Maintenance Feature | Yes | Status Indicator | Yes |
| Fuse Size | 4 modular spacing | Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 5000 | Width in Number of Modular Spacings | 4 |
| Product Net Width | 71.2 mm | Product Net Height | 95.8 mm |
| Product Net Depth / Length | 76.7 mm | Product Net Weight | 0.6 kg |
| ETIM 8 | EC000941 - Surge protection device for power supply systems | ETIM 9 | EC000941 - Surge protection device for power supply systems |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| CN8 | 85363090 | eClass | V11.0 : 27130805 |
| Object Classification Code | 141DCC | Manufacturer ID | 2CTB815704R0800 |
Specifications may be subject to change without notice
