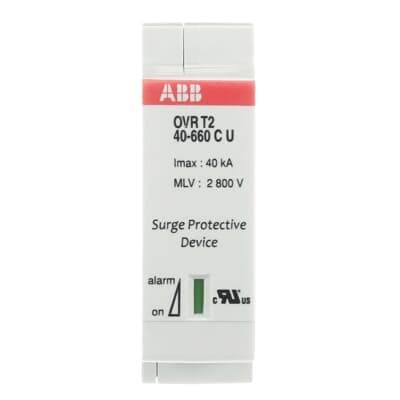

OVR T2 40-660 C U
Product ID:80797
Updated: 2026/4/3
Key Features
- 1Safeguard against transient overvoltages up to 1.2 kV. 2、Handle maximum discharge currents of up to 40 kA reliably. 3、Meet UL 1449 Ed3 standards for safety and performance. 4、Apply to various systems like grounded Wye networks. 5、Utilize QuickSafe technology for enhanced longevity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | UL 1449 Ed3 | Suitable For | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur) | 600 V DC | Nominal AC Voltage of the System (Uo) | 600 V |
| Voltage Protection Level ( Up) | 1 kV (L-N) 1 kV | Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Discharge Current | Nominal (8 / 20 µs) 20 kA I (max, 8 / 20 µs) 40 kA | Short Circuit Withstand Icc | 200 kA |
| Arrester Class | II | Number of Protected Poles | 1 |
| Number of Poles | 1 | Number of Conductors | 1 |
| Transmission Standard | Optic | Version | Plug-in |
| Mounting Type | DIN-Rail | Options Provided | Replacement Cartridge |
| Preventive Maintenance Feature | No | Status Indicator | Yes |
| Fuse Size | 1 modular spacing | Degree of Protection | IP20 |
| Maximum Operating Altitude Permissible | Without Derating 5000 | Maximum Continuous Operating Voltage UL/CSA (MCOV) | (L-PE) 680 V (L-L) 680 V (L-N) 680 V (N-PE) - V |
| Maximum Operating Voltage UL/CSA | 660 V | Type of Low Voltage Distribution System UL/CSA | Single Phase |
| Width in Number of Modular Spacings | 1 | Product Net Width | 17.6 mm |
| Product Net Height | 57 mm | Product Net Depth / Length | 55.6 mm |
| Product Net Weight | 70 g | ETIM 8 | EC000941 - Surge protection device for power supply systems |
| ETIM 9 | EC000941 - Surge protection device for power supply systems | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85363090 |
| UNSPSC | 39121610 | eClass | V11.0 : 27130805 |
| IDEA Granular Category Code (IGCC) | 4906 >> Surge suppressers | Object Classification Code | 141DFC |
| Manufacturer ID | 2CTB802348R4300 |
Specifications may be subject to change without notice
