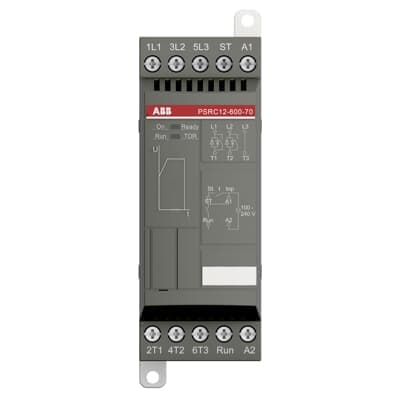

PSRC12-600-70
Product ID:84441
Updated: 2026/4/3
Key Features
- 1Reduce starting current and mechanical stress on motors. 2、Achieve compressor lubrication within one second for smooth operation. 3、Ensure compatibility with 100-240 VAC coil voltage networks. 4、Save energy and simplify installation via a built-in bypass. 5、Monitor and set up easily with run and top-of-ramp relays.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 114 mm | Product Net Height | 140 mm |
| Product Net Depth / Length | 45 mm | Product Net Weight | 0.4 kg |
| Rated Operational Voltage | 208 ... 600 V AC | Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC | Rated Frequency (f) | 50/60 Hz Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 3 kW (400 V) 5.5 kW (500 V) 5.5 kW | Rated Operational Current - In-Line Connection (Ie) | 12 A |
| Service Factor Percentage | 100 % | Overload Protection | Recommended MS132 10.00 ... 16.00 |
| Integrated Electronic Overload | No | Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | Fixed setting Fixed setting | Initial Voltage During Start | Fixed setting |
| Step Down Voltage Special Ramp | Fixed setting | Current Limit Function | No |
| Switch for Inside Delta Connection | No | Run Signal Relay | Yes |
| By-pass Signal Relay | No | Fault Signal Relay | No |
| Overload Signal Relay | No | Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green | Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green | Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) | Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals | Connecting Capacity Main Circuit | Rigid 1 x 0.75 ... 2.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 mm² | Tightening Torque | Control Circuit 1 N·m Main Circuit 1 N·m Supply Circuit 1 N·m |
| Product Main Type | PSRC12 | Function | Soft start with voltage ramp Soft stop with voltage ramp |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 3 Hp (220 ... 240 V AC) Three Phase 3 Hp (440 ... 480 V AC) Three Phase 7.5 Hp (550 ... 600 V AC) Three Phase 10 Hp | Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 8.9 in·lb Main Circuit 8.9 Supply Circuit 8.9 in·lb | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +70 °C |
| Object Classification Code | Q | ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter | ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 | UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter | Manufacturer ID | 1SFA896206R7000 |
Specifications may be subject to change without notice
