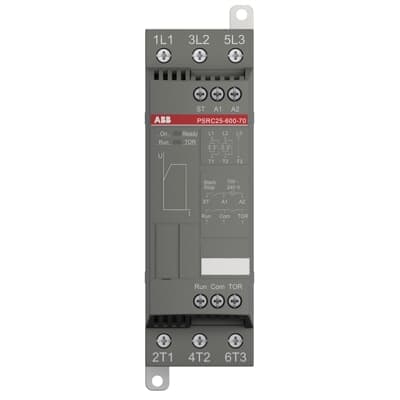

PSRC25-600-70
Product ID:76160
Updated: 2026/4/3
Key Features
- 1Reduce inrush current and motor wear for efficient control. 2、Install in tight spaces with a compact 160x45x128 mm design. 3、Operate and monitor the system easily via remote control. 4、Power versatile applications from 208 to 600 VAC. 5、Enhance protection and reliability with the TF42 overload relay.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 128 mm | Product Net Height | 160 mm |
| Product Net Depth / Length | 45 mm | Product Net Weight | 0.6 kg |
| Rated Operational Voltage | 208 ... 600 V AC | Rated Control Supply Voltage (Us) | 100 ... 240 V AC |
| Rated Control Circuit Voltage (Uc) | 24 V DC | Rated Frequency (f) | 50/60 Hz Main Circuit 50 / 60 Hz |
| Rated Operational Power - In-Line Connection (Pe) | (230 V) 5.5 kW (400 V) 11 kW (500 V) 15 kW | Rated Operational Current - In-Line Connection (Ie) | 25 A |
| Service Factor Percentage | 100 % | Overload Protection | Recommended MS132 20 ... 25 |
| Integrated Electronic Overload | No | Starting Capacity at Maximum Rated Current Ie | 4xIe for 6s |
| Ramp Time | Fixed setting Fixed setting | Initial Voltage During Start | Fixed setting |
| Step Down Voltage Special Ramp | Fixed setting | Current Limit Function | No |
| Switch for Inside Delta Connection | No | Run Signal Relay | Yes |
| By-pass Signal Relay | Yes | Fault Signal Relay | No |
| Overload Signal Relay | No | Signal Indication Completed Start Ramp (LED) | Green |
| Signal Indication Ready to Start/Standby ON (LED) | Green | Signal Indication Running R (LED) | Green |
| Signal Indication Ramping Up/Down (LED) | Green | Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time | 10 |
| Communication | FiledBusPlug(Optional) | Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| Terminal Type | Screw Terminals | Connecting Capacity Main Circuit | Rigid 1 x 0.75 ... 2.5 mm² Rigid 2 x 0.75 ... 1.5 mm² |
| Connecting Capacity Supply Circuit | Rigid 1 x 0.75 ... 2.5 mm² | Tightening Torque | Control Circuit 0.6 N·m Main Circuit 2.3 N·m Supply Circuit 0.6 N·m |
| Product Main Type | PSRC25 | Function | Soft start with voltage ramp Soft stop with voltage ramp |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 7.5 Hp (220 ... 240 V AC) Three Phase 7.5 Hp (440 ... 480 V AC) Three Phase 15 Hp (550 ... 600 V AC) Three Phase 20 Hp | Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| Tightening Torque UL/CSA | Control Circuit 5.3 in·lb Main Circuit 20.4 Supply Circuit 5.3 in·lb | Ambient Air Temperature | Operation -25 ... +60 °C Storage -40 ... +70 °C |
| Object Classification Code | Q | ETIM 7 | EC000640 - Soft starter |
| ETIM 8 | EC000640 - Soft starter | ETIM 9 | EC000640 - Soft starter |
| eClass | V11.0 : 27370907 | UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4740 >> Soft starter | Manufacturer ID | 1SFA896208R7000 |
Specifications may be subject to change without notice
