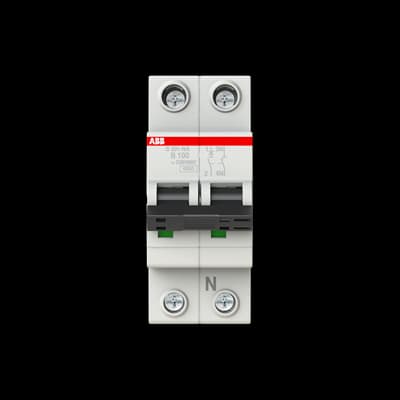

S201-B100NA
Product ID:80301
Updated: 2026/4/3
Key Features
- 1Deliver high-performance protection up to 6 kA at 230V AC. 2、Ensure clear contact position indication via red/green window. 3、Secure connections with patented twin terminal and captive screws. 4、Meet global standards with VDE, CCC, IMQ, and EAC approvals. 5、Achieve long service life with 10,000 electrical cycles.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60898-1 IEC/EN 60947-2 | Tripping Characteristic | B |
| Rated Operational Voltage | acc. to IEC 60898-1 230 V AC acc. to IEC 60898-1 230 V acc. to IEC 60947-2 230 V AC | Operational Voltage | Maximum (Incl. Tolerance) 253 V AC Minimum 12 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Dielectric Test Voltage | 50/60 Hz-1 min: 2 kV | Input Voltage Type | AC |
| Rated Current (In) | 100 A | Rated Short-Circuit Capacity | (AC) 6 kA (DC) 6 kA (230 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 6 kA (230 V) 6 kA | Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 6 kA | Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 9.8 W | Power Supply Connection | Arbitrary |
| Contact Position Indication | ON / OFF | Energy Limiting Class | 3 |
| Electrical Endurance | 10000 AC cycle | Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 | Number of Poles | 1+N |
| Overvoltage Category | III | Position of Neutral Terminals | Right |
| Tightening Torque | 3 N·m | Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable | Housing Material | Insulation Group I, RAL 7035 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Mounting Position | any |
| Recommended Screw Driver | Pozidriv 2 | Accessories Available | Yes |
| Connecting Capacity | Busbar 16 / 16 mm² Conductor 2.5 ... 50 mm² Flexible 4 ... 35 mm² Rigid 2.5 ... 50 mm² Stranded 2.5 ... 50 mm² | Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ... +55 °C Storage -40 ... +70 °C |
| Reference Ambient Air Temperature | 30 °C | Degree of Protection | IP20 IP40 Enclosure with Cover IP40 |
| Pollution Degree | 3 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 2.0 | Product Net Width | 17.5 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.125 kg | Built-In Depth (t2) | 69 mm |
| ETIM 8 | EC000042 - Miniature circuit breaker (MCB) | ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 8536 20 90 | UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 | IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| Manufacturer ID | 2CDS251103R0825 |
Specifications may be subject to change without notice
