S201M-C32

Product ID:77224
Updated: 2026/4/3

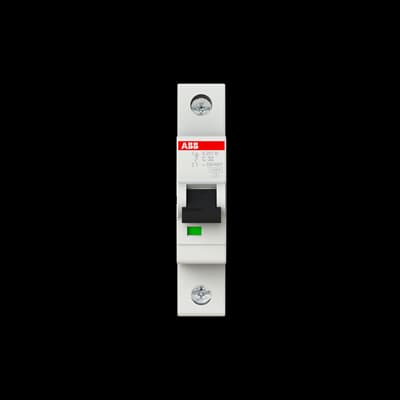

ABB S201M-C32

Key Features

  • 1Comply with IEC/EN 60898-1 and 60947-2 for universal application. 2、Utilize dual tripping for overload and short circuit protection. 3、Mount on DIN rails for easy installation and space efficiency. 4、Limit current with up to 63A rating and 10kA short circuit capacity. 5、Meet UL and CSA approvals for guaranteed safety and reliability.
Product Details
S201M-C32
ABB

Technical Specifications

Detailed engineering parameters

ParameterValueParameterValue
Standards
IEC/EN 60898-1 CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077
Tripping Characteristic
C
Rated Operational Voltage
acc. to IEC 60898-1 230 / 400 V AC acc. to IEC 60898-1 230 V acc. to IEC 60947-2 230 V AC
Operational Voltage
Maximum (Incl. Tolerance) 253 V AC Maximum (Incl. Tolerance) 72 V DC Minimum 12 V AC Minimum 12 V DC
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp)
4 kV at 2000 m 5 kV at Sea Level 6.2 kV
Dielectric Test Voltage
50/60 Hz-1 min: 2 kV
Input Voltage Type
AC/DC
Rated Current (In)
32 A
Rated Short-Circuit Capacity
(AC) 10 kA (230 / 400 V AC) 10 kA (230 V) 10 kA (400 V) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(133 V AC) 25 kA (230 V AC) 15 kA (230 V) 15 kA (400 V) 15 kA
Rated Conditional Short-Circuit Current (Inc)
(230 V) 15 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
(133 V AC) 18.8 kA (230 V AC) 7.5 kA
Frequency (f)
50 Hz
Rated Frequency (f)
50 / 60 Hz
Power Loss
3.7 W at Rated Operating Conditions per Pole 3.7 W
Power Supply Connection
Arbitrary
Contact Position Indication
Red ON / Green OFF
Energy Limiting Class
3
Electrical Endurance
10000 AC cycle
Mechanical Endurance
20000 cycle
Number of Protected Poles
1
Number of Poles
1
Overvoltage Category
III
Tightening Torque
2.8 N·m
Screw Terminal Type
Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking
I / O
Actuator Material
Insulation Group II, Black, Sealable
Housing Material
Insulation Group II, RAL 7035
Mounting on DIN Rail
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position
any
Recommended Screw Driver
Pozidriv 2
Accessories Available
Yes
Connecting Capacity
Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm²
Installation Size
acc. to DIN 43880 1
Terminal Type
Screw Terminals
Ambient Air Temperature
Operation -25 ... +55 °C Storage -40 ... +70 °C
Reference Ambient Air Temperature
30 °C
Degree of Protection
IP20 IP40 Enclosure with Cover IP40
Pollution Degree
3
Environmental Conditions
28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %
Resistance to Vibrations
20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz
Resistance to Shock acc. to IEC 60068-2-27
25g 2 shocks 13 ms
Maximum Operating Voltage UL/CSA
60 V DC 480Y/277 V AC
Interrupting Rating acc. to UL1077
(277 V AC) 6 kA (480Y / 277 V AC) 6 kA (60 V DC) 10 kA
Connecting Capacity UL/CSA
Busbar 14-8 AWG Conductor 14-4 AWG
Tightening Torque UL/CSA
18 in·lb
Width in Number of Modular Spacings
1.0
Product Net Width
17.5 mm
Product Net Height
88 mm
Product Net Depth / Length
69 mm
Product Net Weight
0.125 kg
Pole Net Weight
0.125 kg
Built-In Depth (t2)
69 mm
Dimension Diagram
2CDC022007F0010
ETIM 8
EC000042 - Miniature circuit breaker (MCB)
ETIM 9
EC000042 - Miniature circuit breaker (MCB)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
CN8
8536 20 10
UNSPSC
39121603
eClass
V11.0 : 27141901
IDEA Granular Category Code (IGCC)
4897 >> Miniature circuit breakers
Object Classification Code
F
Manufacturer ID
2CDS271001R0324
