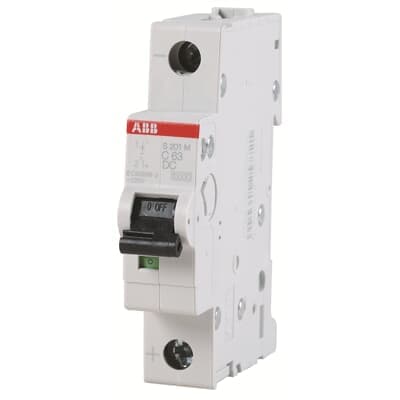

S201M-C3DC
Product ID:77096
Updated: 2026/7/14
Key Features
- 1Deploy dual tripping mechanisms for overload and short circuit protection.
- 2Install easily with DIN rail mount for space-saving design.
- 3Ensure compliance with IEC/EN 60898-1 and 60947-2 standards.
- 4Operate reliably across a wide temperature range from -25°C to +55°C.
- 5Achieve a high breaking capacity of 10 kA at maximum voltage rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Tripping Characteristic | C | Rated Current (In) | 3 A |
| Power Loss | 1.36 W | Number of Poles | 1 |
| Product Net Width | 17.5 mm | Product Net Height | 85 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 0.125 kg |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Business |
| CN8 | 8536200000 | Object Classification Code | F |
| Manufacturer ID | 2TAZ112100R1034 |
Specifications may be subject to change without notice
