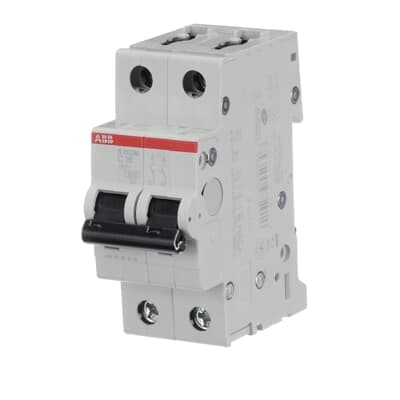

S202M-C10
Product ID:68744
Updated: 2026/4/3
Key Features
- 1Deploy advanced thermal and magnetic tripping mechanisms for superior overload and short-circuit protection. 2、Install a compact DIN-rail design to save crucial space in electrical panels. 3、Ensure reliable interruption with a high breaking capacity of up to 10 kA. 4、Select from multiple tripping characteristics and pole configurations for diverse applications. 5、Guarantee compliance and compatibility by meeting IEC/EN 60898-1 and 60947-2 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 0.018 m | Product Net Height | 0.088 m |
| Product Net Depth / Length | 0.069 m | Product Net Weight | 0.125 kg |
| Dimension Diagram | 2CDC022007F0010 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8536200000 |
| Object Classification Code | F | Manufacturer ID | 2TAZ117200R0104 |
Specifications may be subject to change without notice
