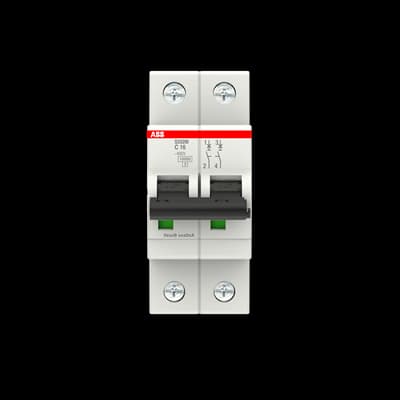

S202M-C16 Bulk
Product ID:77511
Updated: 2026/4/4
Key Features
- 1Meet global standards IEC/EN 60898-1 and 60947-2 for assured compatibility. 2、Deliver 10 kA breaking capacity at 440V AC for reliable short-circuit interruption. 3、Utilize thermal and magnetic tripping for precise overload and fault detection. 4、Save up to 50% panel space with a bottom-fitting auxiliary contact design. 5、Ensure high endurance with insulation group II construction for tough environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60898-1 CSA 22.2 No. 235 IEC/EN 60947-2 UL 1077 | Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC acc. to IEC 60898-1 400 V acc. to IEC 60947-2 440 V AC | Operational Voltage | Maximum (Incl. Tolerance) 125 V DC Maximum (Incl. Tolerance) 440 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V | Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV |
| Input Voltage Type | AC/DC | Rated Current (In) | 16 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V) 25 kA (400 V) 25 kA | Rated Frequency (f) | 50 / 60 Hz |
| Power Supply Connection | Arbitrary | Energy Limiting Class | 3 |
| Number of Protected Poles | 2 | Number of Poles | 2 |
| Overvoltage Category | III | Tightening Torque | 2.8 N·m |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal | Actuator Marking | I / O |
| Options Provided | Unpacked | Mounting Position | any |
| Accessories Available | Yes | Connecting Capacity | Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² |
| Terminal Type | Screw Terminals | Ambient Air Temperature | Operation -25 ... +55 °C |
| Degree of Protection | IP20 IP40 | Pollution Degree | 3 |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Environmental Information | 2CDK400030D0201 |
| Tightening Torque UL/CSA | 18 in·lb | Width in Number of Modular Spacings | 2.0 |
| Product Net Width | 35 mm | Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm | Product Net Weight | 0.23 kg |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
| UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers | Object Classification Code | F |
| Manufacturer ID | 2CDS272001U0164 |
Specifications may be subject to change without notice
