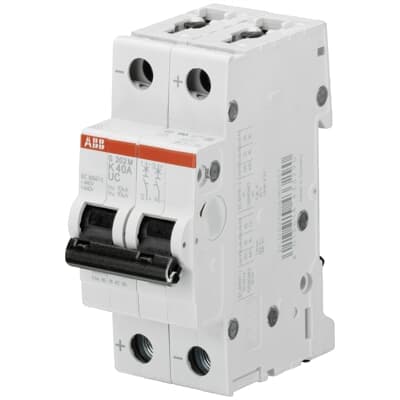

S202M-K2UC V
Product ID:75379
Updated: 2026/7/14
Key Features
- 1Meet global standards like CSA, IEC, and UL for compliance.
- 2Deliver up to 15 kA breaking capacity for reliable protection.
- 3Suit both AC and DC applications to enhance versatility.
- 4Feature screwless terminals for quick and safe installation.
- 5Utilize recyclable thermoplastics for a sustainable solution.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Tripping Characteristic | K | Rated Current (In) | 2 A |
| Number of Poles | 2 | Product Net Width | 35 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.250 kg | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8536200000 |
| eClass | V11.0 : 27141901 | Object Classification Code | F |
| Manufacturer ID | 2TAZ113200R0277 |
Specifications may be subject to change without notice
