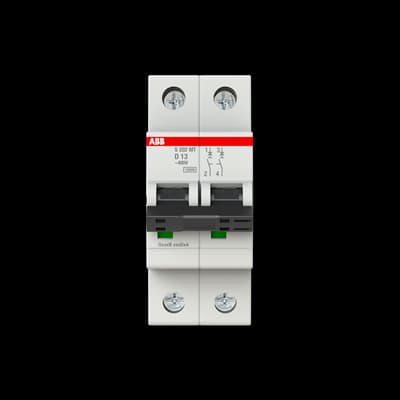

S202MT-D13
Product ID:79399
Updated: 2026/4/5
Key Features
- 1Achieve high interrupt ratings of 10 kA at 230V AC and 15 kA at 400V AC. 2、Ensure robust protection with delayed thermal and electromechanical tripping mechanisms. 3、Install easily in compact spaces with DIN rail mounting (88x35x69 mm). 4、Operate reliably across a wide temperature range from -25°C to +55°C. 5、Meet safety standards including IEC/EN 60898-1 and IEC/EN 60947-2.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2 No. 235 | Tripping Characteristic | D |
| Rated Voltage (Ur) | 440 V | Rated Operational Voltage | acc. to IEC 60898-1 400 V acc. to IEC 60898-1 440 V acc. to IEC 60947-2 230 V |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC Maximum (Incl. Tolerance) 66 V DC Minimum 12 V AC Minimum 12 V DC | Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV at 2000 m 5 kV at Sea Level 6.2 kV | Dielectric Test Voltage | 50/60 Hz-1 min: 2 kV |
| Input Voltage Type | AC | Rated Current (In) | 13 A |
| Rated Short-Circuit Capacity | 10 kA (230 V) 10 kA (400 V) 10 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 15 kA (230 V) 15 kA (400 V) 15 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 11.2 kA | Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 4.6 W | Energy Limiting Class | 3 |
| Mechanical Endurance | 20000 cycle | Number of Protected Poles | 2 |
| Number of Poles | 2 | Overvoltage Category | III |
| Tightening Torque | 2.8 N·m | Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O | Actuator Material | Insulation Group II, Black, Sealable |
| Housing Material | Insulation Group I, RAL 7035 | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any | Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes | Connecting Capacity | Busbar 10 / 10 mm² Flexible with Ferrule 0.75 ... 16 mm² Flexible 0.75 ... 25 mm² Flexible 0.75 ... 25 mm² Rigid 0.75 ... 35 mm² Stranded 0.75 ... 35 mm² |
| Installation Size | acc. to DIN 43880 3 | Terminal Type | Screw Terminals |
| Ambient Air Temperature | Operation -40 ... +70 °C Storage -40 ... 75 °C | Degree of Protection | Enclosure with Cover IP20 |
| Pollution Degree | 3 | Environmental Conditions | 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz | Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Width in Number of Modular Spacings | 2.0 | Product Net Width | 35 mm |
| Product Net Height | 88 mm | Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.25 kg | Pole Net Weight | 0.115 kg |
| Built-In Depth (t2) | 69 mm | ETIM 8 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 8536 20 10 |
| UNSPSC | 39121603 | eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers | Object Classification Code | F |
| Manufacturer ID | 2CDS272445R0131 |
Specifications may be subject to change without notice
