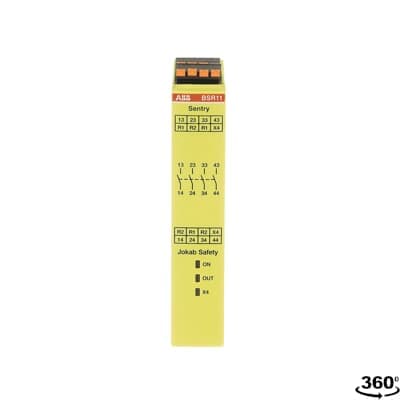

Sentry BSR11P
Product ID:69445
Updated: 2026/7/14
Key Features
- 1Supervise safety devices directly in the voltage supply circuit.
- 2Expand safe outputs for safety relays or PLCs efficiently.
- 3Support up to 6 A to potentially save an intermediary contactor.
- 4Connect via push-in spring or screw terminals for versatility.
- 5Meet PLe/SIL3 standards with global certifications like cULus and CE.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm | Product Net Weight | 0.19 kg |
| Function | Expansion relay - No monitoring of two channel fault | Sub-Function | Start/test input |
| Timer Relay Type | No Time Delay | Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Current AC-15 (Ie) | 5 A | Rated Operational Current DC-13 (Ie) | 6 A |
| Degree of Protection | IP20 | Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² Crimped Pin 2x0.25...1.5 mm² Flexible with Ferrule 1x0.2...2.5 mm² Flexible with Ferrule 2x0.25...1.5 mm² Solid 1x0.2...2.5 mm² Solid 2x0.25...1.5 mm² |
| Wire Stripping Length | 6.5 mm | Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | IS0 13849 | Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG Flexible with Ferrule 1x 24-14 AWG Solid 1x 24-14 AWG |
| Ambient Air Temperature | Operation -25 ... +65 °C Storage -40 ... +70 °C | Object Classification Code | K |
| ETIM 7 | EC001449 - Device for monitoring of safety-related circuits | ETIM 8 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 9 | EC001449 - Device for monitoring of safety-related circuits | eClass | V11.0 : 27371819 |
| UNSPSC | 39122331 | E-Number (Finland) | 2712895 |
| E-Number (Sweden) | 3861399 | Manufacturer ID | 2TLA010040R0201 |
Specifications may be subject to change without notice
