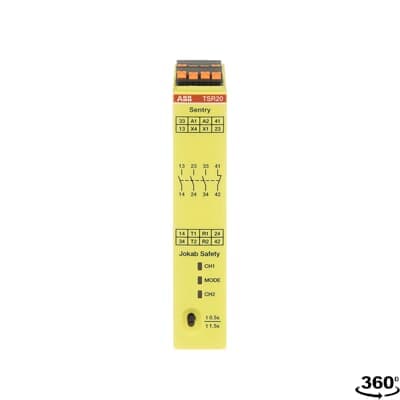

Sentry TSR20P
Product ID:76573
Updated: 2026/7/14
Key Features
- 1Achieve ±1% accuracy with adjustable time delays from 0-999 seconds.
- 2Connect up to 10 relays to a single reset button for multi-reset capability.
- 3Drive loads directly with a high 6A output current, saving on contactor costs.
- 4Ensure reliable safety monitoring for applications up to PLe / SIL3.
- 5Simplify installation using versatile push-in or screw terminal options.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 22.5 mm | Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm | Product Net Weight | 0.207 kg |
| Function | Safety relay for monitoring of safety devices | Sub-Function | Start/test input, Auto reset only, Time delay selectable by switch |
| Timer Relay Type | OFF-Delay | Time Range | 0.5 and 1.5 seconds |
| Rated Control Supply Voltage (Us) | 24 V DC | Rated Operational Current AC-15 (Ie) | 5 A |
| Rated Operational Current DC-13 (Ie) | 6 A | Degree of Protection | IP20 |
| Connecting Capacity | Crimped Pin 1x0.2...2.5 mm² Crimped Pin 2x0.25...1.5 mm² Flexible with Ferrule 1x0.2...2.5 mm² Flexible with Ferrule 2x0.25...1.5 mm² Solid 1x0.2...2.5 mm² Solid 2x0.25...1.5 mm² | Wire Stripping Length | 6.5 mm |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | Standards | IS0 13849 |
| Connecting Capacity UL/CSA | Crimped Pin 1x 24-14 AWG Flexible with Ferrule 1x 24-14 AWG Solid 1x 24-14 AWG | Ambient Air Temperature | Operation -25 ... +65 °C Storage -40 ... +70 °C |
| Object Classification Code | K | ETIM 7 | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8 | EC001449 - Device for monitoring of safety-related circuits | ETIM 9 | EC001449 - Device for monitoring of safety-related circuits |
| eClass | V11.0 : 27371819 | UNSPSC | 39122331 |
| E-Number (Finland) | 2712904 | E-Number (Sweden) | 3861417 |
| Manufacturer ID | 2TLA010061R0001 |
Specifications may be subject to change without notice
