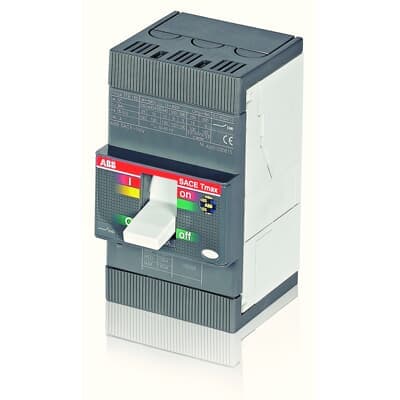

T1N 160 TMD160-1600 4p F FC Cu InN=100%
Product ID:90553
Updated: 2026/4/6
Key Features
- 1Ensure robust protection against overloads and short circuits. 2、Utilize a TMD160-1600 thermomagnetic release for reliability. 3、Connect cables easily with front terminal design. 4、Interrupt currents up to 36 kA at 380V AC. 5、Meet IEC 60947 standards for compliance and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDL000140R0 | Product Net Width | 102 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 70 mm |
| Product Net Weight | 1.3 kg | Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker | Product Type | CB |
| Suitable For | T1 | Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F | Electrical Durability | 8000 cycle 120 cycles per hour |
| Mechanical Durability | 25000 cycle 240 cycles per hour | Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 15 W | Rated Current (In) | 160 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Voltage | 690 V AC 500 V DC | Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 37,5 kA (230 V AC) 37,5 kA (380 V AC) 27 kA (400 V AC) 27 kA (415 V AC) 27 kA (440 V AC) 11 kA (500 V AC) 7,5 kA (690 V AC) 3 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 5 kA (230 V AC) 5 kA (380 V AC) 36 kA (400 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 22 kA (500 V AC) 15 kA (690 V AC) 6 kA (250 V DC) 2 Poles in Series 36 kA (250 V DC) 3 Poles in Series 40 kA (500 V DC) 3 Poles in Series 36 kA | Rated Uninterrupted Current (Iu) | 160 A |
| Release | TMD | Release Type | TM |
| Short-Circuit Performance Level | N | Standards | IEC 60947 |
| Sub-type | T1 | Terminal Connection Type | Fixed Circuit-Breakers Front for Copper Cables |
| Test Voltage Max (Utest) | 3000 V | Test Voltage at Industrial Frequency for 1 Minute | 3000 V |
| Object Classification Code | Q | UNSPSC | 39121100 |
| Manufacturer ID | 1SDA050938R1 |
