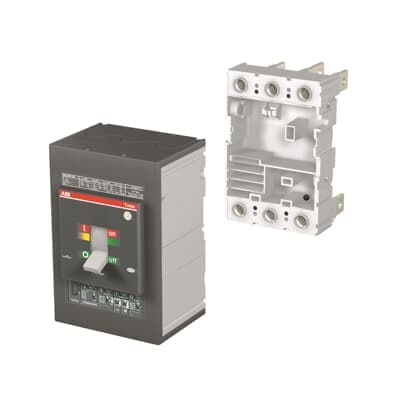

T2 P FP 3p F
Product ID:92269
Updated: 2026/4/4
Key Features
- 1Achieve optimal sizing and coordination for installations up to 250 A. 2、Enhance safety with electronic trip units and double insulation. 3、Install flexibly in fixed, plug-in, or withdrawable configurations. 4、Save space with a compact 70 mm depth for easier cabling. 5、Simplify inventory using a single accessory range for T1-T3 series.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDC210015D0201 | Product Net Width | 90 mm |
| Product Net Height | 170 mm | Product Net Depth / Length | 70 mm |
| Product Net Weight | 0.798 kg | Product Main Type | Accessories for Tmax T |
| Product Name | Fixed Part | Product Type | Fixed Part |
| Suitable For | T2 | Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | P | Device | Fixed Part |
| Number of Poles | 3P | Rated Operational Voltage | 690 V AC 500 V DC |
| Standards | IEC 60947 | Sub-type | T2 |
| Terminal Connection Type | Plug-In Circuit-Breakers Front | Test Voltage at Industrial Frequency for 1 Minute | not applicable V |
| Object Classification Code | Q | UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SDA051329R1 |
Specifications may be subject to change without notice
