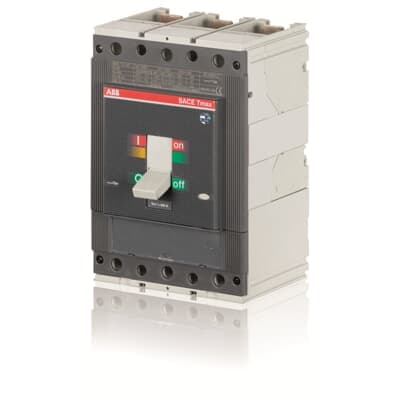

T5N-D/PV 400 MCS UL 3p F 1000V DC
Product ID:93612
Updated: 2026/7/14
Key Features
- 1Meet North American PV safety standards with UL certification.
- 2Support up to 400A for reliable operation in demanding applications.
- 3Install a compact and durable unit for various photovoltaic setups.
- 4Ensure safe pole connections with included mandatory jumpers.
- 5Select from multiple configurations to fit system requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 9AKK10103A1056 9AKK108467A6707 | Product Net Width | 140 mm |
| Product Net Height | 205 mm | Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.25 kg | Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker | Product Type | Switch Disconnector |
| Suitable For | T5 | Version | F |
| Current Type | DC | Number of Poles | 3P |
| Rated Current (In) | 400 A | Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V DC | Rated Operational Voltage | 1000 V DC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA | Rated Uninterrupted Current (Iu) | 400 A |
| Rated Voltage (Ur) | 1000 V DC | Short-Circuit Performance Level | N |
| Standards | UL | Sub-type | T5 |
| ETIM 8 | EC000216 - Switch disconnector | ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27371403 |
| Manufacturer ID | 1SDA070471R1 |
Specifications may be subject to change without notice
