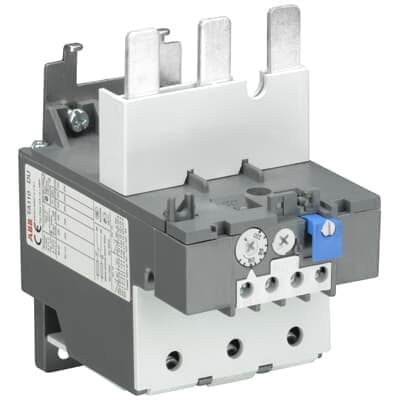

TA110DU-90M
Product ID:70824
Updated: 2026/4/3
Key Features
- 1Provide reliable motor protection against overload and phase failure. 2、Ensure high sensitivity with a Trip Class 10A rating. 3、Automatically adjust performance with built-in temperature compensation. 4、Select manual or automatic reset for flexible operation. 5、Install easily in compact spaces with a 80x120x120mm design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 80 mm | Product Net Height | 120 mm |
| Product Net Depth / Length | 120 mm | Product Net Weight | 0.75 kg |
| Setting Range | 65 ... 90 A | Rated Operational Voltage | Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC Main Circuit 440 V DC |
| Rated Operational Current (Ie) | 90 A | Rated Frequency (f) | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV Main Circuit 6 kV | Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A Auxiliary Circuit NO 5 A | Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.2 A (400 V) NC 0.75 A (400 V) NO 0.37 A (440 V) NC 0.75 A (440 V) NO 0.37 A (500 V) NC 0.3 A (500 V) NO 0.25 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A | Degree of Protection | Housing IP20 Main Circuit Terminals IP10 |
| Pollution Degree | 3 | Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm² |
| Connecting Capacity Main Circuit | Flexible 1x 16 ... 35 mm² Rigid 1x 16 ... 35 mm² | Tightening Torque | Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 7.2 ... 9.6 N·m |
| Wire Stripping Length | Auxiliary Circuit 9 mm Main Circuit 25 mm | Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 Main Circuit Hexagon 4 |
| Power Loss | at Rated Operating Conditions per Pole 2.4 ... 4.5 W | Standards | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC | Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 6-2/0 AWG Stranded 1/2x 6-2/0 AWG |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG | Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb |
| Ambient Air Temperature | Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C | Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m | Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 12g 25g 2 shocks 13 ms |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 | Object Classification Code | F |
| ETIM 5 | EC000106 - Thermal overload relay | ETIM 6 | EC000106 - Thermal overload relay |
| ETIM 7 | EC000106 - Thermal overload relay | ETIM 8 | EC000106 - Thermal overload relay |
| eClass | V11.0 : 27371501 | UNSPSC | 39121520 |
| IDEA Granular Category Code (IGCC) | 5364 >> Overload relay | Manufacturer ID | 1SAZ411201R2001 |
Specifications may be subject to change without notice
