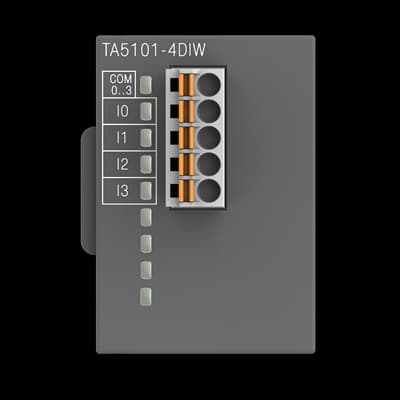

TA5101-4DIW
Product ID:73059
Updated: 2026/7/14
Key Features
- 1Ensure safe operation by isolating input groups from the module.
- 2Operate from -20°C to +60°C with derating to 75% up to 70°C.
- 3Support 5 mA per channel at 24V DC and 1 mA at 5V typical currents.
- 4Mount horizontally or vertically with a compact DIN rail footprint.
- 5Monitor signals easily with spring terminals and LED indicators.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| ABB Type Designation | TA5101-4DIW | CN8 | 85389091 |
| Country of Origin | China (CN) Germany (DE) | Customs Tariff Number | 85389091 |
| EAN | 4053546054118 | ETIM 7 | EC001419 - PLC digital I/O-module |
| ETIM 8 | EC001419 - PLC digital I/O-module | ETIM 9 | EC001419 - PLC digital I/O-module |
| Frame Size | Undefined | Gross Weight | 0.032 kg |
| Invoice Description | Digital input option board. 4 DI: 24VDC. Spring terminals included (TA5101-4DIW) | Made To Order | No |
| Maximum Order Quantity | 0 piece | Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 EAN | 4053546054118 | Package Level 1 Height | 50 mm |
| Package Level 1 Units | 1 carton | Package Level 1 Width | 40 mm |
| Product Main Type | TA5101 | Product Name | Distributed Automation PLCs |
| Product Net Depth / Length | 54.2 mm | Product Net Height | 42 mm |
| Product Net Weight | 0.014 kg | Product Net Width | 28.5 mm |
| Product Type | PLC-AC500-eCo | Quote Only | No |
| Selling Unit of Measure | piece | Short Description | TA5101-4DIW: Digital input option board |
| Stocked At (Warehouses) | Menden, Germany Beijing, China Beijing, China Singapore, Singapore | UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | 27-24-22-92 | Manufacturer ID | 1SAP187000R0201 |
Specifications may be subject to change without notice
