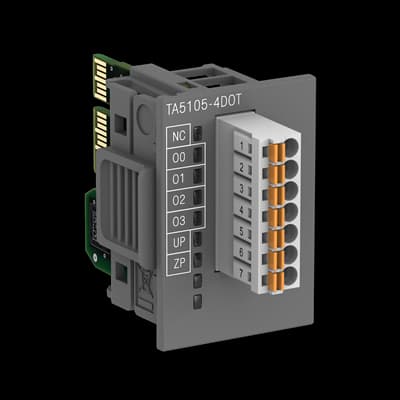

TA5105-4DOT
Product ID:82500
Updated: 2026/7/14
Key Features
- 1Deliver four transistor outputs handling 24VDC and up to 0.5A each.
- 2Utilize spring terminals for easy and secure wire connections.
- 3Provide galvanic isolation between outputs for enhanced safety.
- 4Operate reliably across a wide -20°C to +60°C temperature range.
- 5Mount easily on DIN rails for compact system integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.016 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Function | 4 DO: 24VDC 0.5A. Spring terminals included |
| Number of Digital Outputs | 4 | Number of Digital Configurable I/Os | 0 |
| Output | Transistor | Output Voltage Type | DC |
| Output Current | 0.5 A | Output Voltage Maximum | 20.4 ... 28.8 V |
| Degree of Protection | IP20 | Supply Voltage | 20.4 ⦠28.8 V DC |
| Product Main Type | TA5105 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-92 | ETIM 8 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151705 | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187000R0002 |
Specifications may be subject to change without notice
