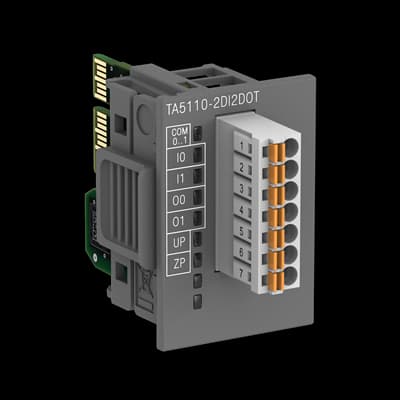

TA5110-2DI2DOT
Product ID:89071
Updated: 2026/7/14
Key Features
- 1Ensure safe operation with galvanic isolation between I/O groups.
- 2Add 2 digital inputs and 2 transistor outputs for flexible expansion.
- 3Simplify wiring using convenient spring-loaded terminals.
- 4Fit compact panels with a depth of just 143mm.
- 5Operate reliably across a wide industrial temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.015 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Function | 2 DI: 24VDC. 2 DO: 24VDC 0.5A. Spring terminals included |
| Number of Digital Inputs | 2 | Number of Digital Outputs | 2 |
| Number of Digital Configurable I/Os | 0 | Input Voltage Type | DC |
| Input Current | 5 mA | Maximum Input Voltage | 0 ... 30 V |
| Delay Time (<span style="font-size:9.0pt;font-family:'Arial',sans-serif;color:#333333;background:white;">τ</span>) | 4 ⦠8 ms | Output | Transistor |
| Output Voltage Type | DC | Output Current | 0.5 A |
| Output Voltage Maximum | 20.4 ... 28.8 V | Degree of Protection | IP20 |
| Supply Voltage | 20.4 ⦠28.8 V DC | Product Main Type | TA5110 |
| Product Name | Distributed Automation PLCs | eClass | 27-24-22-92 |
| ETIM 8 | EC001419 - PLC digital I/O-module | UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Manufacturer ID | 1SAP187000R0003 |
Specifications may be subject to change without notice
