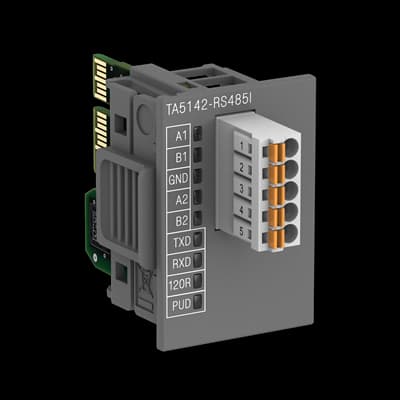

TA5142-RS485I
Product ID:70515
Updated: 2026/7/14
Key Features
- 1Configure via Automation Builder for Modbus RTU and CAA_SerialCom.
- 2Ensure safe data exchange with 500 V DC potential separation.
- 3Operate reliably across a wide industrial temperature range.
- 4Weighs just 16g with a 5-pin, 3.50mm pitch terminal block.
- 5Meet IP20 protection and robust EMC standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.016 kg | Product Net Depth / Length | 54.2 mm |
| Product Net Height | 42 mm | Product Net Width | 28.5 mm |
| Gross Weight | 0.033 kg | Package Level 1 Depth / Length | 70 mm |
| Package Level 1 Height | 50 mm | Package Level 1 Width | 40 mm |
| Package Level 1 Units | 1 carton | Function | RS485 isolated. Spring terminals included |
| Degree of Protection | IP20 | Accessory Type | Electrical: Other |
| Product Main Type | TA5142 | Product Name | Distributed Automation PLCs |
| eClass | 27-24-22-92 | ETIM 8 | EC002584 - Accessories/spare parts for controls |
| UNSPSC | 32151705 | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187300R0002 |
Specifications may be subject to change without notice
