TA5211-TSCL-B
Product ID:91262
Updated: 2026/4/3
Key Features

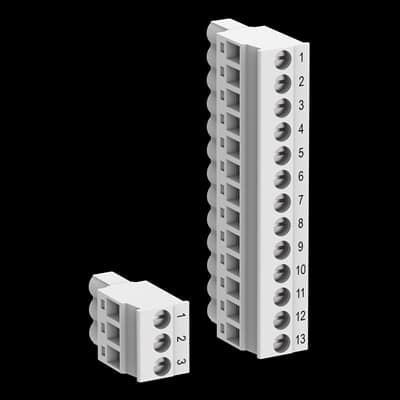

- 1Utilize solid and flexible copper conductors for industrial durability. 2、Connect power supply with the removable 3-pin terminal block. 3、Interface I/O signals using the included 13-pin terminal block. 4、Achieve straightforward setup with 5.00 mm pitch on screw front and cable side. 5、Ensure secure connections with a fastening torque of 0.5 Nm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.027 kg | Product Net Depth / Length | 40 mm |
| Product Net Height | 165 mm | Product Net Width | 100 mm |
| Gross Weight | 0.034 kg | Package Level 1 Depth / Length | 40 mm |
| Package Level 1 Height | 250 mm | Package Level 1 Width | 150 mm |
| Package Level 1 Units | 1 carton | Function | for PM5012. screw front / cable side. 1 Power supply and 1 I/O connector |
| Degree of Protection | IP20 | Accessory Type | Electrical: Plug |
| Product Main Type | TA5211 | Product Name | Distributed Automation I/Os |
| eClass | 27-24-22-92 | ETIM 8 | EC002584 - Accessories/spare parts for controls |
| UNSPSC | 32151703 | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187400R0001 |
Specifications may be subject to change without notice
