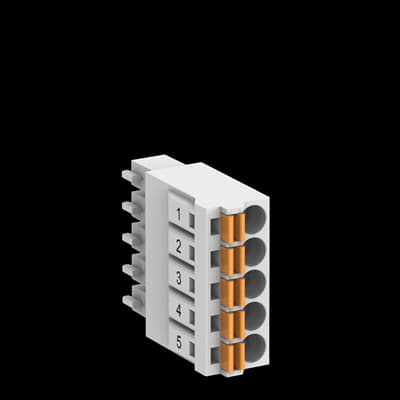

TA5220-SPF5
Product ID:82485
Updated: 2026/7/14
Key Features
- 1Connect AC500-eCo option boards with 5 poles securely.
- 2Utilize spring terminal design for reliable, vibration-resistant connections.
- 3Accept various conductor cross-sections from 0.2 mm² to 1.5 mm².
- 4Remove and reuse terminals for easy maintenance and replacement.
- 5Install compactly with dimensions of 18.2 mm x 7.7 mm x 22.9 mm.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.015 kg | Product Net Depth / Length | 40 mm |
| Product Net Height | 165 mm | Product Net Width | 100 mm |
| Gross Weight | 0.023 kg | Package Level 1 Depth / Length | 40 mm |
| Package Level 1 Height | 250 mm | Package Level 1 Width | 150 mm |
| Package Level 1 Units | 1 carton | Function | Spare part for option board. 5-pole. Spring terminal. 6 pieces |
| Degree of Protection | IP20 | Accessory Type | Electrical: Plug |
| Product Main Type | TA5220 | Product Name | Distributed Automation I/Os |
| eClass | 27-24-22-92 | ETIM 8 | EC002584 - Accessories/spare parts for controls |
| UNSPSC | 32151703 | WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Manufacturer ID | 1SAP187400R0012 |
Specifications may be subject to change without notice
