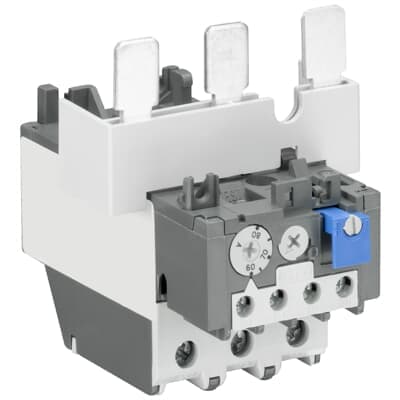

TA80DU-63M
Product ID:70814
Updated: 2026/4/3
Key Features
- 1Provide reliable motor protection against overload and phase failure. 2、Ensure precise tripping with trip class 10A. 3、Enhance accuracy through temperature compensation. 4、Choose flexible automatic or manual reset options. 5、Integrate seamlessly with TA/TF series contactors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 78 mm | Product Net Height | 97 mm |
| Product Net Depth / Length | 111 mm | Product Net Weight | 0.365 kg |
| Setting Range | 45 ... 63 A | Rated Operational Voltage | Auxiliary Circuit 440 V DC Auxiliary Circuit 500 V AC Main Circuit 690 V AC Main Circuit 440 V DC |
| Rated Operational Current (Ie) | 63 A | Rated Frequency (f) | Auxiliary Circuit 50 Hz Auxiliary Circuit 60 Hz Auxiliary Circuit DC Main Circuit 60 Hz Main Circuit 50 Hz Main Circuit DC |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV Main Circuit 6 kV | Rated Insulation Voltage (Ui) | 690 V |
| Number of Poles | 3P | Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 | Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A Auxiliary Circuit NO 5 A | Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A (120 V) NO 1.5 A (240 V) NC 3 A (240 V) NO 1.2 A (400 V) NC 0.75 A (400 V) NO 0.37 A (440 V) NC 0.75 A (440 V) NO 0.37 A (500 V) NC 0.3 A (500 V) NO 0.25 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A (125 V) NO 0.25 A (24 V) NC 1.25 A (24 V) NO 1.25 A (250 V) NC 0.12 A (250 V) NO 0.04 A (60 V) NC 0.25 A (60 V) NO 0.25 A | Degree of Protection | IP20 Housing IP20 Main Circuit Terminals IP10 |
| Pollution Degree | 3 | Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² Flexible 1/2x 0.75 ... 2.5 mm² Rigid 1/2x 0.75 ... 4 mm² |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 25 mm² Flexible with Ferrule 2x 2.5 ... 10 mm² Rigid 1x 2.5 ... 25 mm² Rigid 2x 2.5 ... 16 mm² | Tightening Torque | Auxiliary Circuit 1 ... 1.3 N·m Main Circuit 4.5 N·m |
| Wire Stripping Length | Auxiliary Circuit 9 mm Main Circuit 14 mm | Recommended Screw Driver | Auxiliary Circuit Pozidriv 1 Main Circuit Pozidriv 2 |
| Mounting Position | any | Power Loss | at Rated Operating Conditions per Pole 1.9 ... 3.8 W |
| Standards | IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 | Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 8-1 AWG Stranded 1/2x 8-1 AWG | Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 18-14 AWG Stranded 1/2x 18-14 AWG |
| Tightening Torque UL/CSA | Auxiliary Circuit 12 in·lb Main Circuit 40 in·lb | Ambient Air Temperature | Operation -25 ... +55 °C Operation Compensated -25 ... +55 °C Storage -40 ... +70 °C |
| Ambient Air Temperature Compensation | Yes | Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 12g 25g 2 shocks 13 ms | Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 | Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Object Classification Code | F | ETIM 5 | EC000106 - Thermal overload relay |
| ETIM 6 | EC000106 - Thermal overload relay | ETIM 7 | EC000106 - Thermal overload relay |
| ETIM 8 | EC000106 - Thermal overload relay | eClass | V11.0 : 27371501 |
| UNSPSC | 39121520 | IDEA Granular Category Code (IGCC) | 5364 >> Overload relay |
| Manufacturer ID | 1SAZ331201R2005 |
Specifications may be subject to change without notice
