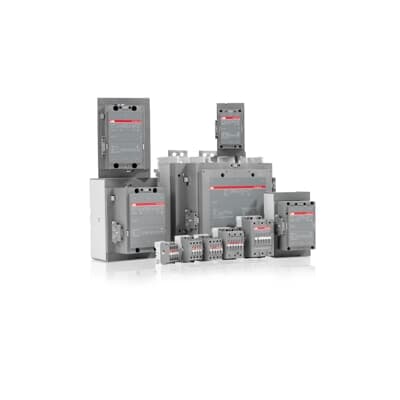

TAE110-30-11 55-96V DC
Product ID:93135
Updated: 2026/4/3
Key Features
- 1Achieve high insulation voltage up to 1000V. 2、Ensure robust mechanical durability with 5 million cycles. 3、Utilize compact dimensions: 140 mm x 146 mm x 96 mm. 4、Enable efficient DC operation with specified currents. 5、Benefit from IP20 protection for safe auxiliary terminal operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Width | 114 mm | Product Net Depth / Length | 123.5 mm |
| Product Net Height | 148 mm | Product Net Weight | 2 kg |
| Number of Main Contacts NO | 3 | Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 | Number of Auxiliary Contacts NC | 1 |
| Rated Operational Voltage | Main Circuit 1000 V | Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Π= 40 °C 160 A | Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 160 A (690 V) 55 °C 145 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 110 A (440 V) 55 °C 100 A (500 V) 55 °C 100 A (690 V) 55 °C 82 A (1000 V) 55 °C 30 A (380 / 400 V) 55 °C 110 A (220 / 230 / 240 V) 55 °C 110 | Rated Operational Power AC-3 (Pe) | (415 V) 59 kW (440 V) 59 kW (500 V) 59 kW (690 V) 75 kW (1000 V) 40 kW (380 / 400 V) 55 kW (220 / 230 / 240 V) 30 kW |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 | Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Short-Circuit Protective Devices | gG Type Fuses 200 A | Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 175 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour (AC-2 / AC-4) 150 cycles per hour (AC-3) 300 cycles per hour | Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V acc. to UL/CSA 600 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV | Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 1200 cycles per hour | Rated Control Circuit Voltage (Uc) | DC Operation 55 ... 96 V |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 7 W Holding at Max. Rated Control Circuit Voltage DC 7 W Pull-in at Max. Rated Control Circuit Voltage DC 950 V·A | Operate Time | Between Coil De-energization and NC Contact Closing 15 ... 20 ms Between Coil De-energization and NO Contact Opening 18 ... 23 ms Between Coil Energization and NC Contact Opening 12 ... 22 ms Between Coil Energization and NO Contact Closing 15 ... 25 ms |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 | Connecting Terminals (delivered in open position) Main Poles | M8 hexagon socket screw with single connector |
| Terminal Type | Cable Clamp | Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 hp (208 V AC) Three Phase 30 hp (220 ... 240 V AC) Three Phase 40 hp (440 ... 480 V AC) Three Phase 75 hp (550 ... 600 V AC) Three Phase 100 hp |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C Close to Contactor for Storage -40 ... 70 °C | Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Object Classification Code | Q | UNSPSC | 39121529 |
| Manufacturer ID | 1SFL459061R6211 |
Specifications may be subject to change without notice
