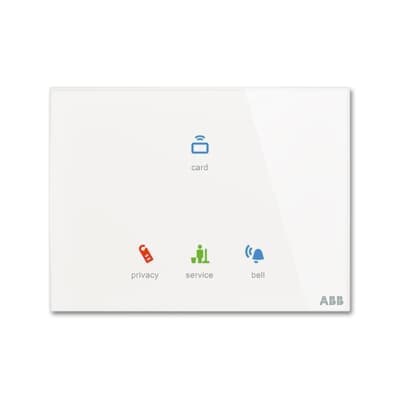

TA/U3.2.1-CG
Product ID:80561
Updated: 2026/4/3
Key Features
- 1Configure device icons and texts via the web tool. 2、Support KNX functions with a color-coded illumination system. 3、Integrate temperature sensing and proximity detection features. 4、Ensure seamless compatibility with KNX home and building automation. 5、Feature a compact design measuring 86 mm x 157 mm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Ambient Air Temperature | Operation -5 ... +45 °C | Degree of Protection | IP20 |
| Number of Buttons | 3 | Number of Actuation Points | 3 |
| Compatible Bus Systems | KNX (TP) | Product Range | KNX ABB tacteo® |
| Product Net Width | 115 mm | Product Net Height | 86 mm |
| Product Net Depth / Length | 34 mm | Product Net Weight | 130.1 g |
| Built-In Depth (t2) | 35 mm | ETIM 9 | EC000672 - Touch sensor for bus system |
| eClass | V11.0 : 27143138 | UNSPSC | 39121801 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | WEEE B2C / B2B | Business To Consumer |
| Manufacturer ID | 2CKA006300A1585 |
Specifications may be subject to change without notice
