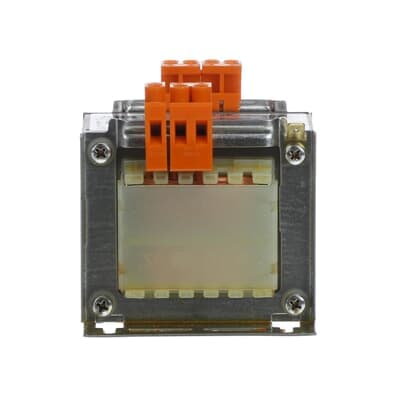

TM-C 100/115-230
Product ID:68947
Updated: 2026/4/3
Key Features
- 1Deliver robust and reliable performance for control circuits. 2、Support versatile 115-230 V AC voltage range compatibility. 3、Utilize a compact, space-efficient 86x87mm design. 4、Minimize energy waste with only 14W power loss. 5、Ensure safe operation meeting CE and RoHS standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
| Primary Voltage | 230-400 V AC | Secondary Voltage | 115-230 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 15 W |
| Power Supply | 100 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 86 mm |
| Product Net Height | 87 mm | Product Net Depth / Length | 87 mm |
| Product Net Weight | 2 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM236933R0801 |
Specifications may be subject to change without notice
