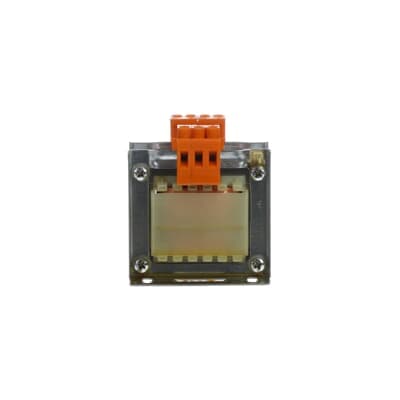

TM-C 50/12-24
Product ID:76378
Updated: 2026/4/3
Key Features
- 1Install easily with compact 80x90x74 mm dimensions. 2、Ensure reliable performance using copper conductor material. 3、Power various control circuits like commands and interlocks. 4、Meet specific power needs without energy-saving features. 5、Source from trusted brand ABB for quality assurance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 3.5 kV |
| Primary Voltage | 230-400 V AC | Secondary Voltage | 12-24 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 9 W |
| Power Supply | 50 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 80 mm |
| Product Net Height | 85 mm | Product Net Depth / Length | 74 mm |
| Product Net Weight | 1.05 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM207113R0801 |
Specifications may be subject to change without notice
