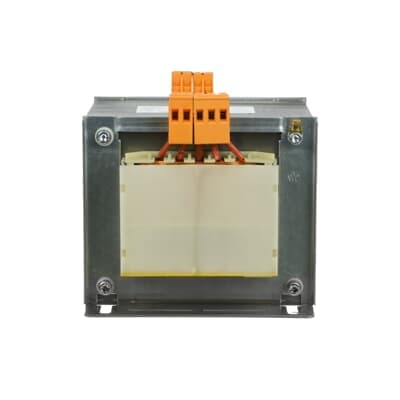

TM-I 1000/115-230 P
Product ID:69027
Updated: 2026/4/3
Key Features
- 1Ensure electrical separation with double or reinforced insulation for safety. 2、Achieve precise voltage control using separate ±15V terminals. 3、Deliver high power with a 1000 VA rating for demanding uses. 4、Save space with a compact 155x166x168 mm design. 5、Meet CEI EN 61558-2-2 and 61558-2-4 safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-4 , UL 506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 115-230 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 60 W |
| Power Supply | 1000 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 155 mm |
| Product Net Height | 166 mm | Product Net Depth / Length | 168 mm |
| Product Net Weight | 13.2 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM204413R0801 |
Specifications may be subject to change without notice
