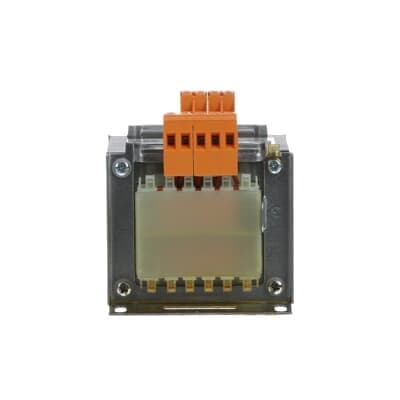

TM-I 250/115-230 P
Product ID:69489
Updated: 2026/7/14
Key Features
- 1Separate primary and secondary windings with double insulation for safety.
- 2Support both 115V and 230V AC secondary voltages for flexibility.
- 3Minimize power loss at rated conditions for efficiency.
- 4Meet diverse industrial application needs reliably.
- 5Comply with CE regulations for European standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-4 , UL 506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 115-230 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 38 W |
| Power Supply | 250 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 100 mm |
| Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
| Product Net Weight | 3.6 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM204503R0801 |
Specifications may be subject to change without notice
