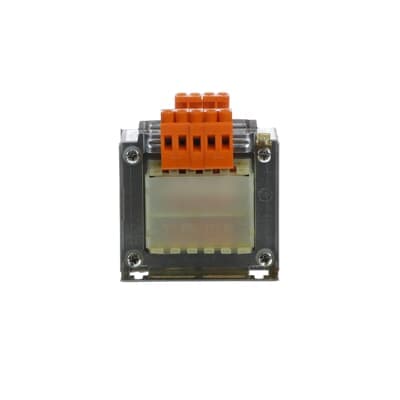

TM-S 100/12-24 P
Product ID:68914
Updated: 2026/4/3
Key Features
- 1Prevent accidental contact with secondary winding phases. 2、Integrate easily with compact 200x96x87 mm dimensions. 3、Rely on ABB's trusted brand for high-quality performance. 4、Supply safety extra low voltage circuits under 50V. 5、Meet IEC/EN 60947-3 international safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 15 W |
| Power Supply | 100 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 200 mm |
| Product Net Height | 87 mm | Product Net Depth / Length | 87 mm |
| Product Net Weight | 2 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM207163R0801 |
Specifications may be subject to change without notice
