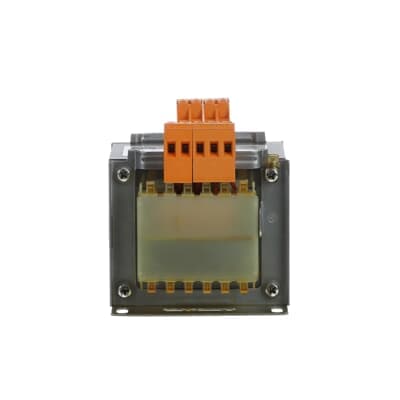

TM-S 250/12-24 P
Product ID:69041
Updated: 2026/4/3
Key Features
- 1Ensure precise voltage control from 230-400V to 12-24V AC. 2、Provide reinforced insulation for maximum safety against accidental contact. 3、Meet strict EN 61558-2-2, UL506, and CSA standards for compliance. 4、Deliver efficient 250VA power with only 38W loss for reliability. 5、Install easily in compact spaces with a 100x110mm footprint.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 12-24 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 38 W |
| Power Supply | 250 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 100 mm |
| Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
| Product Net Weight | 3.6 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM260113R0801 |
Specifications may be subject to change without notice
