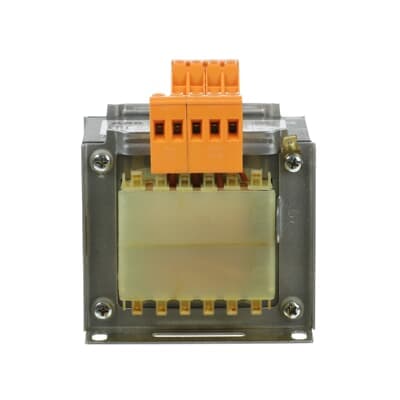

TM-S 250/24-48 P
Product ID:69034
Updated: 2026/7/14
Key Features
- 1Supply safety extra low voltage circuits (<50V) without danger.
- 2Meet CEI EN 61558-2-2 safety standards for isolation.
- 3Control input voltage precisely with separate terminals.
- 4Ensure durability with high-quality copper conductors.
- 5Install easily with compact 100x105x110 mm dimensions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Standards | EN 61558-2-2, EN 61558-2-6 , UL506 , CSA C22-2-N66 | Rated Insulation Voltage (Ui) | 4.8 kV |
| Primary Voltage | 230-400 ±15 V AC | Secondary Voltage | 24-48 V AC |
| Rated Frequency (f) | 50/60 Hz | Power Loss | 21 W |
| Power Supply | 250 V·A | Insulation Class | F |
| Fuse Type | aM | Material of Conductor | Copper |
| Cable Cross-Section | 6 mm² | Ambient Temperature | max. 40 °C |
| Environmental Information | See RoHS Information | Product Net Width | 100 mm |
| Product Net Height | 105 mm | Product Net Depth / Length | 110 mm |
| Product Net Weight | 3.6 g | ETIM 8 | EC002486 - One-phase control transformer |
| ETIM 9 | EC002486 - One-phase control transformer | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business | CN8 | 85043190 |
| eClass | V11.0 : 27031302 | Object Classification Code | T |
| Manufacturer ID | 2CSM204683R0801 |
Specifications may be subject to change without notice
